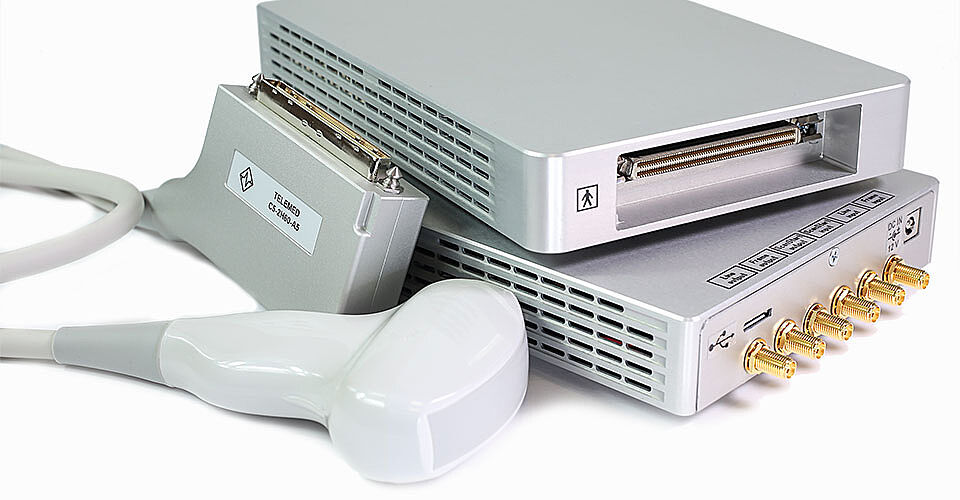

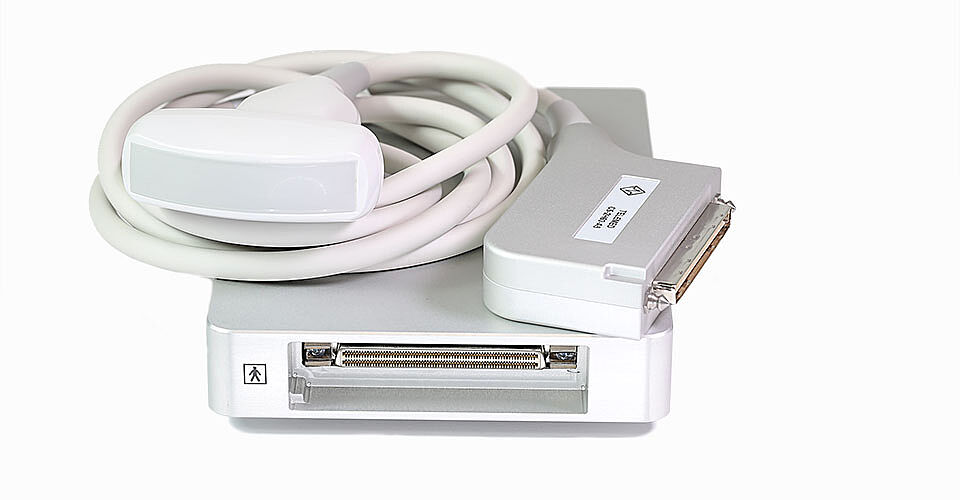

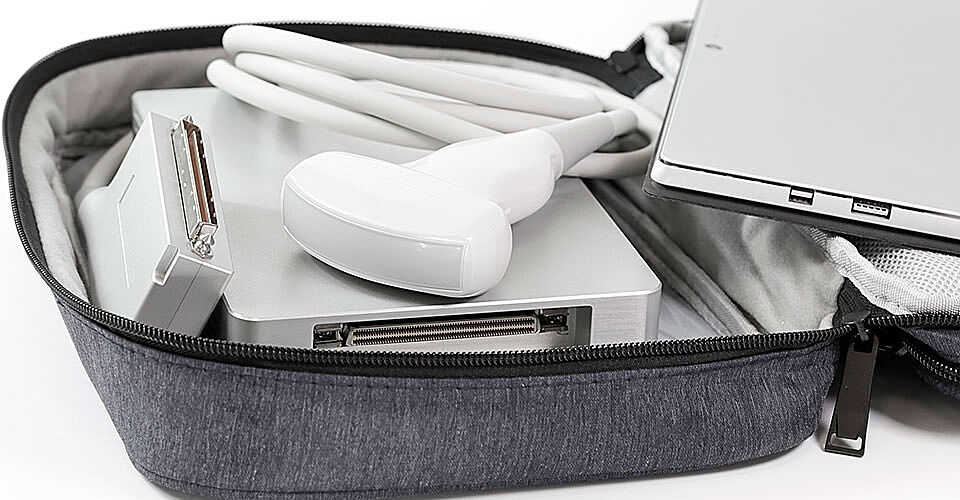

ArtUs family scanners

ArtUs is Telemed's very compact and highly powerful application-based ultrasound device. Featured with high-speed USB3.0 interface it allows increase scanning speed without compromising image quality and provides real-time transfer RF ultrasound data to a PC. New "WideView" imaging mode maximizes viewing area for linear, convex and endocavity transducers. Other features includes improved spatial compound available for linear and convex transducers, parallel beamforming, harmonics, B-steer imaging. The system is capable to drive high-density and high-frequency transducers delivering detailed, rich and wide dynamic range images. Software features include Echo Wave II with Speckle noise reduction as a standard package and optional research package: SDK library and advanced data processing and visualisation procedures for MATLAB environment.

ArtUs is available in following modifications:

  • ArtUs EXT-1H Kit, a beam former module with a single probe connector and power supply;
  • ArtUs EXT-2H Kit, a beam former module with two probe connectors and power supply (in development);
  • I/O module (optional), hardware modification, provides up to 6 trigger signals to/from external equipment through additional connectors;
  • RF module (optional), ArtUs scanner modification, provides access to RF data via Telemed's SDK and MATLAB utilities


ArtUs EXT-1H Kit includes:

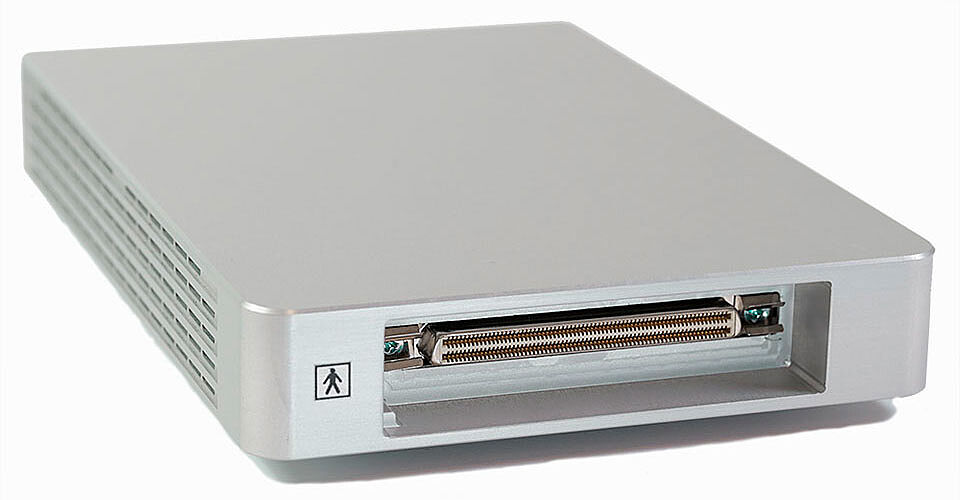

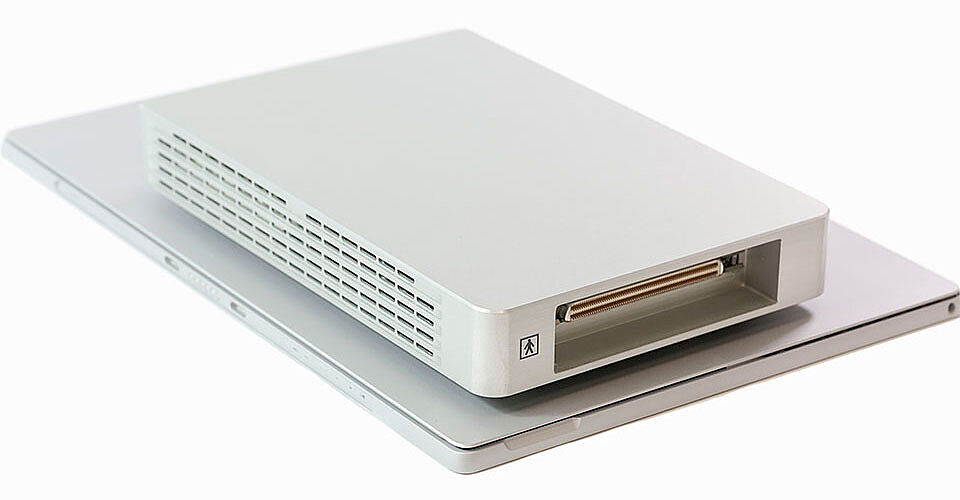

  • ArtUs EXT-1H beamformer
  • ultrasound transducer (optional)
  • Micro-B to Type-A USB 3.0 cable
  • 100~240 VAC, 50~60 Hz power supply (EN60601-1)
  • AC power cable
  • software, assembly and set-up manual, operation manual (supplied on USB memory stick)
  • I/O module (optional)
  • RF module (optional)


Compatible transducers

LF9-5N60-A3 and LF11-5H60-A3 transducers dedicated for muscle movement studies.
Transducer shape optimised for fixation on human body.

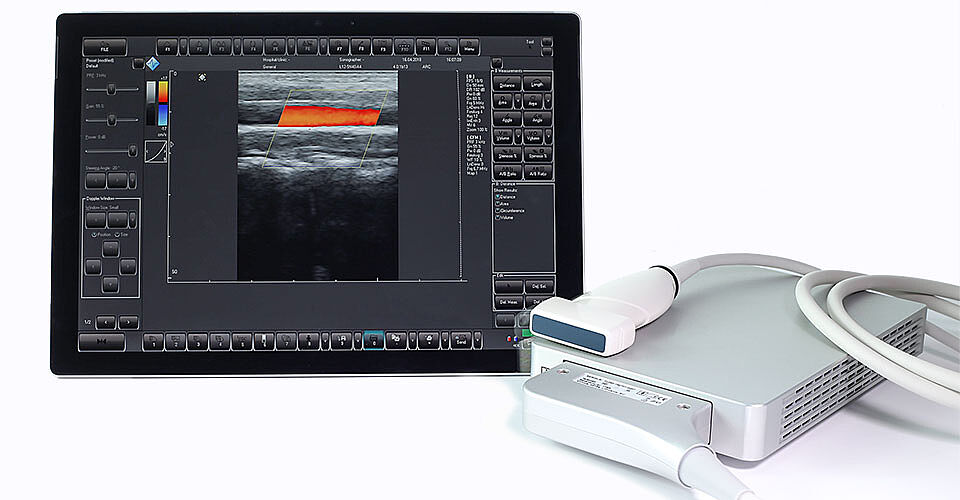

Ultrasound images

Also you can see ultrasound videos here.

Request detailed information
